Summary: The motorcycle, a ubiquitous form of transportation today, has a fascinating history. This article explores the invention of the first motorcycle, delving into the key figures, their innovations, and the evolution of this groundbreaking machine.
The Dawn of the Motorcycle: From Ideas to Early Prototypes
The 19th century witnessed a surge of technological advancements, laying the groundwork for the motorcycle's creation. The invention of the steam engine, electric motor, bicycle, and internal combustion engine fueled the imaginations of engineers and inventors, particularly in Europe. These innovations spurred the development of "motorized bicycles," marking the nascent steps towards the motorcycle.
1868: The Michaux-Perreaux - A Steam-Powered Pioneer
France, known for its wine, also birthed the first motorcycle, the Michaux-Perreaux, a steam-powered contraption built by Pierre Michaux and Louis-Guillaume Perreaux. Though some controversy surrounds the inventors' contributions due to age discrepancies in patent records, the Michaux-Perreaux is widely recognized as the first motorcycle. The original model resides in the Ile-de-France museum.
The Michaux-Perreaux featured a wrought iron frame resembling a modified bicycle frame with a raised seat to accommodate the small steam engine. The front wheel, larger than the rear, was made of wood, iron-clad, and had wrought iron spokes. The steam engine, placed on the frame's vertical beam at a 45-degree angle, was powered by alcohol and produced 0.5 horsepower. The engine's motion was transmitted to the rear wheel via a pulley and belt system. The motorcycle lacked suspension and brakes.
To operate the Michaux-Perreaux, alcohol was ignited to heat water, producing steam. The rider would then pedal the front wheel, building steam pressure in the cylinder, and propel the motorcycle forward. The Michaux-Perreaux attained a maximum speed of 15 km/h.
1869: The Roper - A Step Towards Modernity
Across the Atlantic, in Texas, Sylvester H. Roper, a prolific inventor, unveiled his steam-powered motorcycle in 1869. The Roper, housed at the Smithsonian Institution, incorporated a steam engine and bicycle design but placed the engine between the two wheels, resembling modern motorcycles.
The Roper featured a steel frame and two identical wooden wheels, each 34 inches in diameter. A coal-fired boiler was suspended under the seat and connected to the frame with springs. Two pistons were located on each side of the frame, connected to the boiler with tubes. A short chimney extended from behind the seat. A connecting rod-crank mechanism transmitted power to the rear wheel.
The Roper boasted a 0.5-horsepower engine and achieved a top speed of 16 km/h. Notably, it included a cable connected to the handlebars to control the throttle and a chain from the handlebars to a spoon-shaped metal plate pressed against the front wheel, acting as a brake system.
To operate the Roper, the side door of the boiler was opened, coal was ignited, and water was heated to produce steam. The rider then tightened a cable to accelerate the motorcycle forward.
The Roper’s noisy operation and smoke emission led to complaints from neighbors, even resulting in a police visit, but Roper was quickly released due to his patent.
1885: The Reitwagen - The Birth of a Revolution

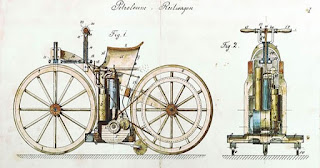

Germany, renowned for its beer and sausages, witnessed the birth of a new invention, the Reitwagen. In 1885, Gottlieb Daimler, a German engineer, constructed this revolutionary machine. Its patent, DRP 36,423, was granted to Daimler on August 11, 1886. The original Reitwagen was lost in a fire at Daimler's DMG factory in Cannstatt in 1903, and the versions exhibited in various museums are accurate replicas based on blueprints and records.
Daimler's passion for mechanical engineering ignited his pursuit of automotive innovation. He collaborated with Wilhelm Maybach, a young industrial designer who became his long-term partner. The duo worked for Nikolaus Otto's company, developing the four-stroke gasoline engine, for which Otto received a patent in 1877. In 1882, Daimler and Maybach left Otto's company with a shared vision, establishing a factory to research and develop small, high-speed engines suitable for various applications.
Facing challenges with Otto's engine's ignition and fuel supply system, Maybach sought inspiration from a drawing by British engineers Watson. After extensive experimentation, he developed a "hot tube ignition" system that ensured stable ignition and allowed for engine acceleration. This system employed a tube heated from the outside and directed towards the cylinder near the location of a future spark plug. When compressed by the piston, the fuel mixture ignited spontaneously against the heated tube. Daimler and Maybach kept their innovative work strictly confidential.
Despite the existing value of Otto's four-stroke engine patent, Daimler obtained a patent for a horizontal four-stroke gasoline engine with hot tube ignition on December 23, 1883, thanks to the engine's size, ignition system, and Daimler's persuasive language. Anticipating patent competition from Otto, Karl Benz, and other inventors, Daimler filed another patent for a "system to control engine speed by controlling the exhaust valves," safeguarding his invention.
Daimler further refined his engine, creating a single-cylinder vertical four-stroke engine nicknamed the "pendulum clock" due to its resemblance. Patented in April 1885, this compact engine, designed to be adaptable to various applications, weighed 60 kilograms, had a cylinder capacity of 264cc, and produced 0.5 horsepower at 650 rpm. This engine is considered a precursor to modern gasoline engines.
The Reitwagen was born when Daimler and Maybach fitted the "pendulum clock" engine to a wooden bicycle. Daimler filed a patent for the Reitwagen in 1885 and received it the following year.
The Reitwagen featured a wooden frame, wooden wheels with steel rims, handlebars, and a seat. Two small wheels, resembling training wheels on children's bicycles, served as stabilizers. The T-shaped handlebars leaned backward, made of steel. The seat, a U-shaped piece of curved metal, was covered in leather and directly mounted on the engine. The Reitwagen weighed 90 kilograms, had a cylinder capacity of 264cc, and used gasoline or kerosene as fuel. The engine's power was transmitted to the rear wheel via a pulley and belt system. The Reitwagen could achieve a top speed of 12 km/h.
The Reitwagen required starting and operation before riding. To start the engine, a small flame was lit beneath the hot tube, and the engine was cranked several times by hand. After about a minute of operation, the rider would mount the seat and manipulate the transmission lever to start the motorcycle.
Lacking a clutch, the rider adjusted the belt tension to change speeds by selecting a pulley for the belt (similar to the gear and chain system in modern bicycles). Two speeds were available, 6 or 12 km/h, depending on the chosen pulley.
On November 10, 1885, Daimler's 17-year-old son, Paul, became the world's first motorcycle rider, riding the Reitwagen from Cannstatt to Untertürkheim and back, a distance of about 10 kilometers, at a speed of 12 km/h. The Reitwagen's ride was far from comfortable given the road conditions of the time. The main issue was the engine's heat under the seat.
The First Motorcycle Accident
The Roper, powered by steam after over 25 years of development since its 1869 debut, was involved in the first motorcycle accident in 1894. The accident involved its inventor.
A Controversial Debate: Defining the First Motorcycle
A debate regarding the definition of the first motorcycle emerged. Some argue that the two-wheeled, steam-powered vehicles built by Louis-Guillame Perreaux and Pierre Michaux in France in 1868 and Sylvester Roper in the United States shortly after should be considered the first motorcycles, even though they were not fully developed. Others contend that an internal combustion engine is a crucial component.
Most experts agree that the Reitwagen, built in Germany in 1885, is the world's first motorcycle.
However, the Reitwagen was merely a test result in Daimler and Maybach's development project for the four-stroke internal combustion engine and was not commercially produced.
The First Mass-Produced Motorcycle: The Hildebrand & Wolfmüller "Motorrad"
The first mass-produced motorcycle was the Hildebrand & Wolfmüller "Motorrad" (or H&W Motorrad). Built by brothers Henry and Wilhelm Hildebrand in collaboration with Alois Wolfmüller and Hans Geisenhof, the motorcycle was patented in Germany in January 1894. The motorcycle featured a four-stroke gasoline engine, two parallel cylinders, a 1489cc displacement, a 2.5-horsepower output at 240 rpm, and water cooling. It reached a speed of approximately 45 km/h. This marked the first use of the term "motorcycle" (German: "Motorrad"). The motorcycle was manufactured in Munich and also licensed for production in France under the name "The Pétrolette."
The Significance of the First Motorcycle
The Daimler Reitwagen revolutionized transportation with its unique features:
- "Riding automobile" design: The Reitwagen's design resembled a small carriage, earning it the nickname "riding automobile." This design aimed to provide a more stable and comfortable experience than a motorized bicycle.
- Wooden bicycle frame: The Reitwagen's frame was crafted from sturdy wood, similar to traditional bicycles. This frame provided the necessary structural integrity and support for the motorcycle.
- Gasoline-powered engine: The heart of the Reitwagen was the innovative Otto cycle, single-cylinder engine. This gasoline-powered engine enabled the motorcycle to produce power and propel itself forward, marking a significant advancement in using internal combustion engines for transportation.
- Spray-type carburetor: To ensure efficient combustion in the engine, the Reitwagen employed a spray-type carburetor. This carburetor accurately mixed fuel and air through spraying, optimizing the fuel-air mixture for better performance and power output.
- Two-wheeled configuration: The Reitwagen featured a two-wheeled configuration aligned with modern motorcycles. This design provided stability and maneuverability, allowing the rider to navigate various terrain with relative ease.
- Iron-clad wheels: The wheels were iron-clad, providing increased traction and durability compared to traditional wooden wheels. This enabled the motorcycle to handle rough surfaces and uneven terrain more effectively before the invention of pneumatic tires.
- Dual outrigger wheels: The Reitwagen featured two outrigger wheels, also known as stabilizing wheels, located on either side of the motorcycle. These auxiliary wheels provided additional stability during initial riding and at low speeds, mitigating the inherent balance challenges of motorcycles.
The invention of the world's first motorcycle, the Daimler Reitwagen, marked the beginning of a new era in motorcycle history, transforming the concept of two-wheeled transportation.
Summary:
The development of the first motorcycle was a gradual process, driven by a confluence of innovative minds and technological advancements. From the steam-powered Michaux-Perreaux and Roper to the gasoline-powered Reitwagen, each invention contributed to the evolution of this groundbreaking machine. While the Reitwagen is widely recognized as the first motorcycle, the Hildebrand & Wolfmüller "Motorrad" became the first mass-produced motorcycle, paving the way for the motorcycle industry we know today. The invention of the motorcycle revolutionized transportation, providing a new level of mobility and freedom for individuals worldwide.
